Product Description

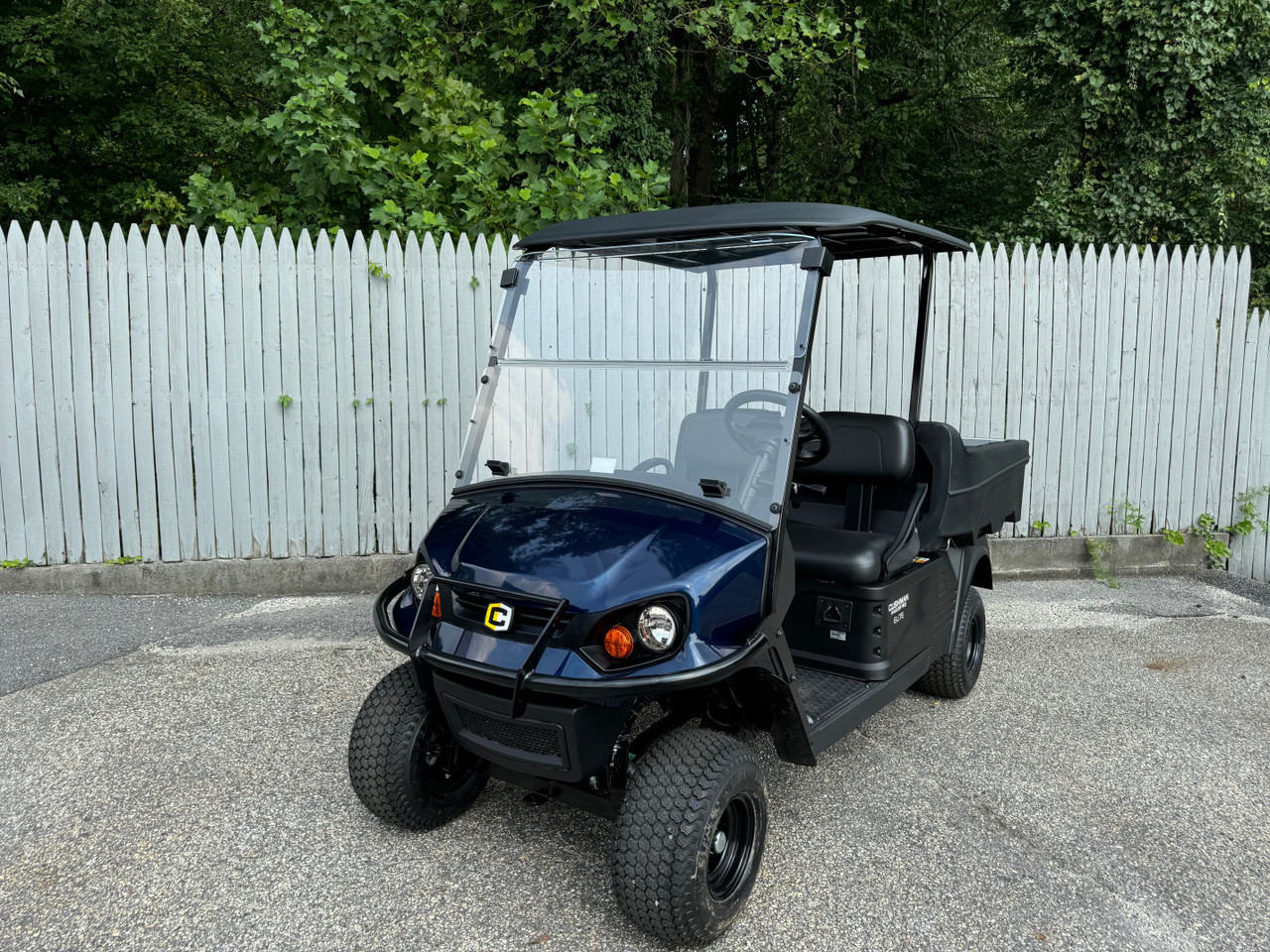

2025 Cushman Hauler Pro Elite Lithium
The remarkable range and zero-maintenance ELiTE® lithium battery powered by Samsung SDI technology has raised the bar for utility vehicles. Protect your turf with reduced weight, and improve your range even further with the optional ELiTE lithium triple battery pack. Meet the exacting standards of your busy workday with the lower operational costs and superior productivity of the Hauler PRO
Options Installed :
- Taillights
- Turn Signals and Flashers
- Black Suntop and Windshield
***FREIGHT / DESTINATION FEE $595 Additional ***
ELiTE Lithium | |
|---|---|
| FRAME | Welded Steel with E-Coat DuraShield™ Powder Coat |
| BODY & FINISH | Injection Molded TPO |
| STANDARD COLOR | Patriot Blue |
| OVERALL LENGTH | 119 in (302 cm) |
| OVERALL WIDTH | 49 in (125 cm) |
| OVERALL HEIGHT | 70.5 in (179.1 cm) |
| WHEEL BASE | 76.8 in (195 cm) |
| WHEEL TRACK | Front: 35 in (88.9 cm) Rear: 38.5 in (97.8 cm) |
| GROUND CLEARANCE | 4.3 in (11 cm) |
| CARGO DECK CAPACITY | 12 cu ft (0.34 cu m) |
| CARGO DECK MATERIAL | Roto-Molded Polyethylene |
| POWER SOURCE | 56.7V Li-Ion Battery |
| HORSEPOWER (KW) | 14.9 hp (11.1 kW) |
| ELECTRICAL SYSTEM | 48V Primary, 12V Auxiliary |
| BATTERY (QTY/TYPE) | 4.2 ELiTE – Twin Pack |
| BATTERY CHARGER | 811W World Charger |
| KEY OR PEDAL START | Pedal |
| SPEED CONTROLLER | 350 Amp AC Controller |
| DRIVE TRAIN | Motor Shaft Direct Drive |
| TRANSAXLE | Limited Slip Differential with Helical Gears |
| GEAR SELECTION | Dash Mounted FNR/Key Switch |
| REAR AXLE RATIO | 16.99:1 |
| SEATING CAPACITY | 2 Person |
| CURB WEIGHT | 926 lbs (420 kg) |
| VEHICLE LOAD CAPACITY | 1200 lb (544 kg) |
| BED LOAD CAPACITY | 800 lb (363 kg) |
| TOWING CAPACITY | 1500 lb (680 kg) max |
| OUTSIDE CLEARANCE CIRCLE | 21.5 ft (6.6 m) |
| SPEED | 16.5 mph ± 0.5 mph (26.5 kph ± 0.8 kph) |
| STEERING | Self-Compensating Rack & Pinion |
| SUSPENSION | Leaf Springs w/ Hydraulic Shock Absorbers |
| SERVICE BRAKE | Dual Rear Wheel Mechanical, Self-Adjusting Drum |
| PARKING BRAKE | Automatic Electro-Magnetic |
| TIRES | 18 x 8.5 - 8 (6-Ply Tires) |
